KONE TransitMaster™ 120

Reliable people flow for transit environments

Product information

Description

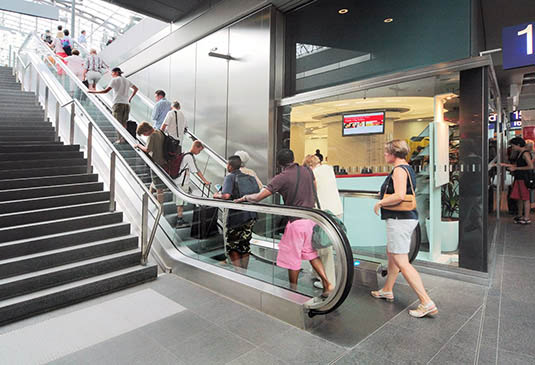

The KONE TransitMaster™ 120 escalator is suitable for multiple sectors, such as airports or public transportation, like railways or even metro systems. It can also be used in commercial environments with high load profiles or special requirements.

Specifications

Operational environment: indoor, semi-outdoor, outdoor
Speed: 0.5, 0.65, 0.75 m/s
Inclination: 27.3º, 30º, 35º
Step width: 800, 1000 mm
Vertical rise: up to 20 m

Tools and downloads

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator & Autowalk Planning guide

Our easy-to-understand guide gives you all the information you need when planning an escalator or autowalk solution, including guidance on building regulations and safety codes.

TransitMaster™ 120 brochure

Product information in a nutshell for KONE TransitMaster™ 120 escalator.

Specifications – Transitmaster™ 120 Escalator

Technical details and safety and design options for the KONE TransitMaster™ 120 escalator.

solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

KONE TransVario factsheet

TransVario drive - a premium escalator drive option for even better escalator performance, space-efficiency and sustainability.

更多工具和下载

Options and highlights

Energy-efficiency

Smart operational modes and inverter optimize energy consumption under different load conditions
Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
Energy efficient inverter provides smooth speed regulation during standby operation and minimizes energy consumption at full speed

Safety enhancement

In addition to the standard safety features, we offer optional safety features including:

New traffic signalization solutions to provide extra guidance
Audible alarms provide clear guidance on escalator travel direction
Alarm for travel direction if passengers enter an escalator in the wrong direction
Fall-prevention barrier and extended balustrades provide additional passenger protection

Find out more about safety at KONE

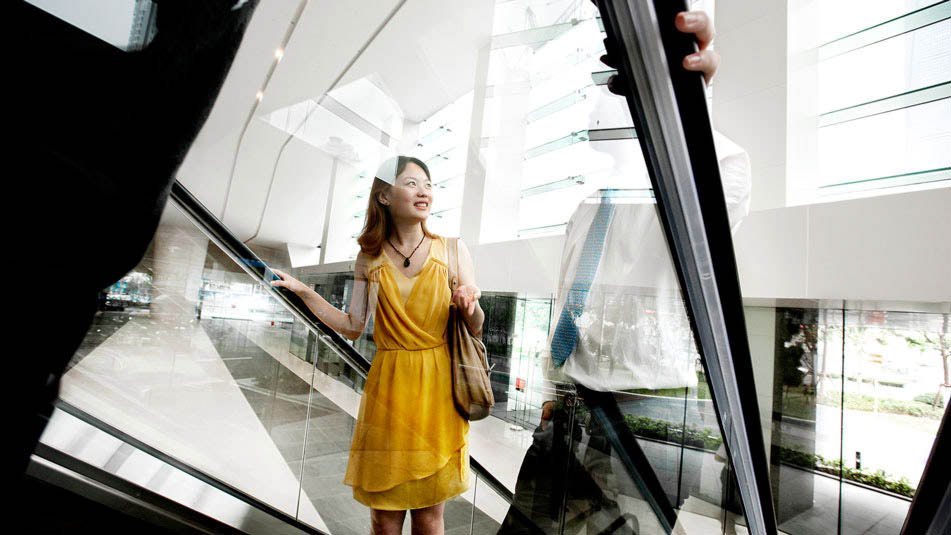

Design

High quality visual design for the best possible user experience:

Innovative and attractive lighting solutions that also improve passenger guidance and safety
Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

为您的建筑添置电梯

了解通力针对各种建筑需求定制的多种电梯解决方案。

了解通力维保服务

发现更多通力维保解决方案

了解通力智能客流解决方案

News & References

自动扶梯和自动人行道解决方案

产品名称	描述（及类型）	市场细分	最大提升高度	速度	倾斜角度	运行时间	运行环境
通力商用型自动扶梯	自动扶梯	商业、零售业、酒店、办公楼	13米	0.4 ，0.5米/秒	30°，35°	12-16小时/天	室内，半室外，室外
通力倾斜式自动人行道	倾斜式自动人行道	商业、零售业、酒店、办公楼	7米	0.5米/秒	10°，12°	12-16小时/天	室内，半室外
通力公共交通型自动扶梯	自动扶梯	基础设施	18米	0.4，0.5，0.65，0.75米/秒	27.3°，30°	20-24小时/天	室内，半室外，室外
通力水平自动人行道	水平自动人行道	基础设施	15-100米	0.4，0.5，0.65，0.75米/秒	0-6°	20-24小时/天	室内，半室外
通力InnoTrack自动人行道	水平自动人行道	基础设施	15-60米	0.5，0.65米/秒	0°	20-24小时/天	室内
